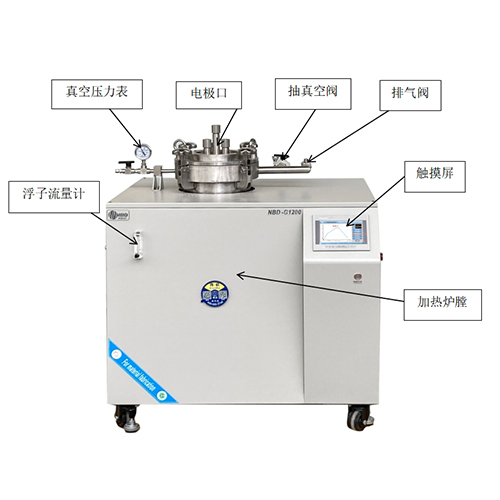

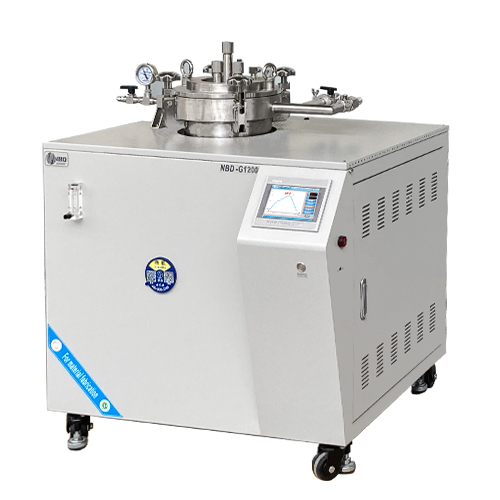

Vacuum molten salt electrolysis furnace
Release time: 2025-04-28 22:45:04 Number of views: 335
The vacuum molten salt electrolysis furnace is mainly used in the field of molten salt electrochemistry. High temperature molten salt, as an ion conductor, has a wide electrochemical window and fast reaction kinetics at high temperatures, making it an ideal electrolyte for electrochemical metallurgy. The electrolytic aluminum industry is a successful example of this. Based on this, we have developed a laboratory grade molten salt electroplating furnace to fill the market gap.
|
Equipment features:
| ||
Equipment name | Vacuum molten salt electrolysis furnace | ||
Specification and model | NBD-G1200-270TIFRD30L | ||
power supply | 三相380V 50HZ | ||
precision | ±1℃ | ||
rated power | 16KW | ||
Type of temperature measuring element | K type thermocouple，Φ2*420mm | ||
Heating method | Bottom heating+circular heating around | ||
Tmax | 1200℃ | ||
rated temperature | 1150℃ | ||
Rated voltage of electrolytic power supply | 15V | ||
Rated current of electrolytic power supply | 100A | ||
Draw true blank size | KF25 | ||
Air inlet size | Φ6.35 | ||
Exhaust port size | Φ 25mm pagoda joint | ||
Ultimate vacuum | 5-10pa (if higher vacuum degree is required, molecular pump can be selected) | ||
rotameter | 60-600ml/min | ||
Heating temperature zone size | Φ350*420mm | ||
Furnace body size | 995mm in length, 1200mm in height, and 910mm in depth | ||
Recommended heating rate | ≤5℃/min | ||
weight | 约380KG | ||

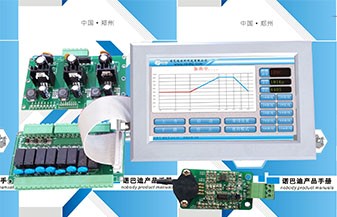

control system |
|
1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; 2. Pre order sintering is available to achieve unmanned sintering process curve sintering; 3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.
| |
heating element |
| Mo doped Fe Cr Al alloy | |
Vacuum material tank |   | reaction kettle | |

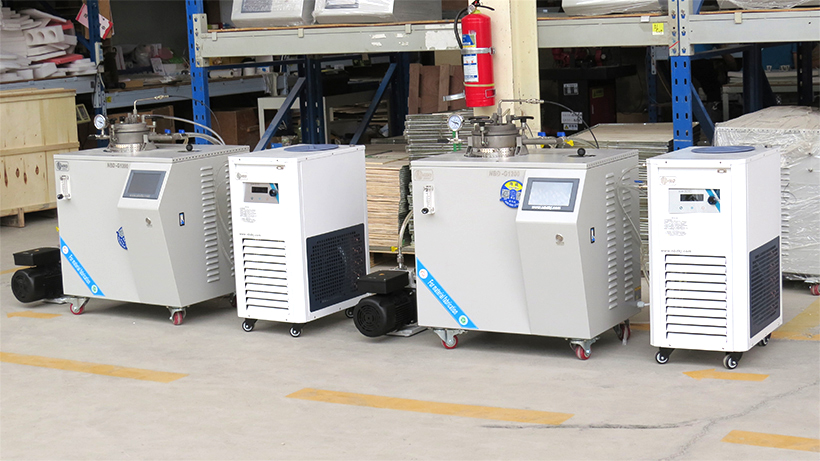

Batch delivery on-site |   | ||
Equipment usage precautions | 1. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment; | ||
Service Support | 1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals). | ||
