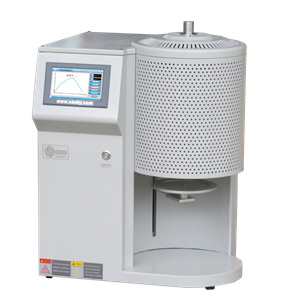

1. Desktop design, easy to move and operate;
2. Electric lifting platform, easy and fast loading. Ring heater, uniform temperature field;
3. Single furnace can burn about 30~50 pieces, up to 2 layers;
4. Modular structure, durable and easy to maintain;
5. The top of the furnace is provided with an exhaust hole, which can sweep away the volatiles of dry pre-burning;
6. One key operation is simple and convenient, pre-stored 15 working curves, whatever you want;
7. Real-time sintering temperature and power monitoring, safety and power saving.

Model

NBD-B1600-12TI

Specification

AC220V   2.5KW

Tmax

1550℃（<1 hour）

load mode

bottom loading

reachable heating rate

≤20℃/min

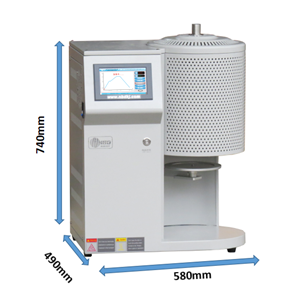

chamber size

Φ120*150mm

control system

1. Can prestore 15 denture sintering curves of various manufacturers, call at will. Each curve can be set 30 sections of "temperature-time" axis, to avoid the trouble caused by the repeated setting of different experimental processes;
2. It has the functions of overtemperature alarm, broken couple prompt, leakage protection and so on.

Temperature accuracy

+/- 1℃

heating element

Special high density silicon carbon heating element

Net weight

60KG

Attention

If you want to sinter zirconium discs soaked with dye, be sure to dry them completely before placing them in the equipment for sintering to extend the service life of the equipment.

Service support

1 year warranty with lifetime support (The warranty does not include consumable parts, such as furnace tubes and sealing rings).
