1. Unique air intake structure, double water cooled flange;
2. Use contactless thyristor module to improve the stability of system control;
3. The use of vacuum forming process made of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
4. Intelligent human-computer interactive operating system, intuitive and convenient operation;
5.Modular structure, durable and easy to maintain.

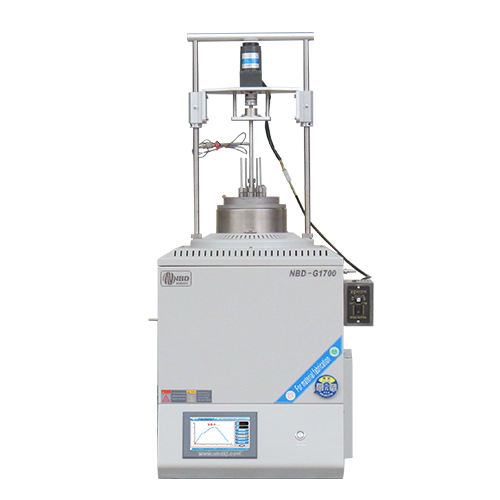

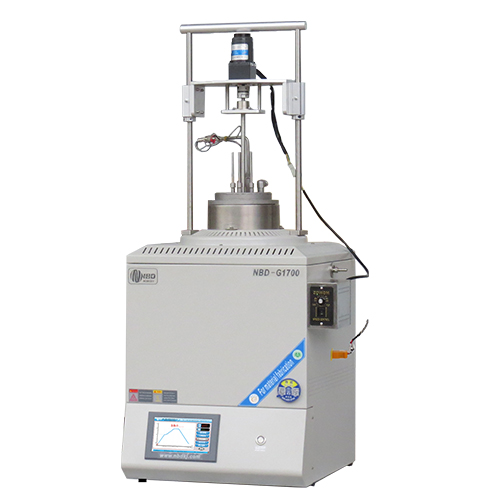

Equipment model

NBD-G1700-12TIN

Electrical specifications

AC220V    2.8KW

Reachable temperature

1650℃（<1 hour）

Continuous temperature

1600 ℃ (continuous)

B-type thermocouple

Recommended heating rate

≤10℃/min

φ170×160mm

External dimensions of furnace body

570 in length, 530 in depth, and 1200mm in height

control system

1. 15 temperature curves can be pre stored to avoid the trouble caused by repeated settings of different experimental processes;
2. The experimental process is more intuitive and the operation is more convenient;
3. The NBD-101E embedded operating system features a graphical interface for exchanging Chinese and English, a 7-inch true color touch screen input, an intelligent human-machine dialogue mode, and non-linear temperature correction;
4. It has functions such as over temperature alarm, disconnection prompt, and leakage protection.

precision

+/- 1℃

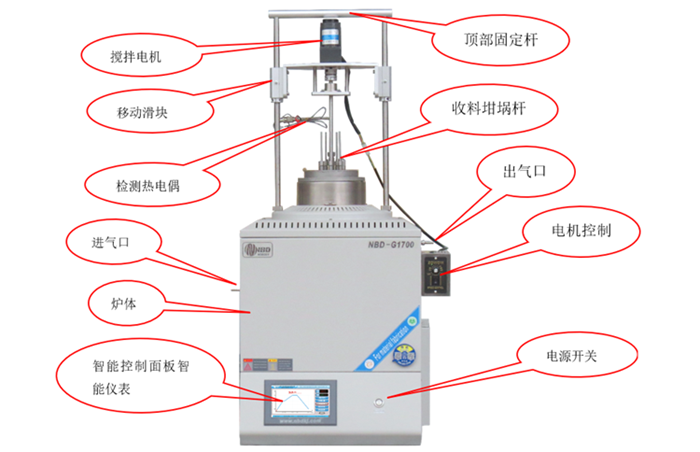

Vacuum chamber crucible and sample extraction structure

net weight

约80KG

Equipment usage precautions

When the equipment is burned at a temperature of 1150 ℃ -1650 ℃, the top stainless steel flange and crucible must be removed. The temperature resistance limit of stainless steel is 1150 ℃.
2. The connecting rod under the mixing rod must be installed using the high-temperature resistant screws we provided, as ordinary screws may burn out.
When placing 5 small crucibles for material retrieval, it is necessary to place all the silos of the small crucibles towards the center direction.
