Configuration

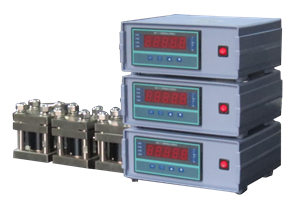

	Technical parameters of intelligent display controller: 1, Input: mV signal, standard transmission signal or other (default mv signal); 2, measurement accuracy: ±0.1%(FS)/(23℃±5℃); 3, sampling speed: slow (10SPS); (Special requirements sampling speed please specify when purchasing) 4, display mode: 0.56 inch and 0.32 inch bright LED digital tube, brightness four adjustable; Display range -1999--9999; 5, alarm output: default 2, up to 3, each road optional lower limit, upper limit, upper limit range alarm; Contact capacity: (3A/220VAC). (Please specify when purchasing) 6, analog output: 1-5V, 4-20mA and other optional (please explain when purchasing); 7, communication interface: RS-232 serial interface /RS485 serial interface, multi-machine address range 0-99; Baud rate 2400-38400bps, (please specify when purchasing); 8, power supply: 220VAC/50Hz; 24VDC (24VDC power supply order instructions); 9, opening size: 92mm×43.5mm standard plug-in box.

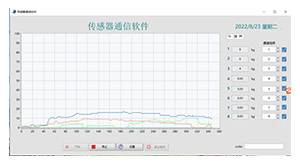

	Instrument data monitor terminal in real time 1. Real-time display of pressure data curve; 2, multi-channel free choice and switch; 3. Real-time recording and storage of two-dimensional data of time and pressure; 4, record the data, and automatically generate reports, each data report package to generate files.
	Stainless steel four-column fixture and high precision force sensor (< 22 tons)
Compressed effective space	80*50*5mm
New energy materials electrochemical performance test commonly used supporting equipment
	Insulation sheet die It is an indispensable equipment for infrared, fluorescence, calcium and iron analysis instruments, and an indispensable tool for the analysis and research of new powder materials in various fields. In addition to the standard pressure mold, there are vacuumable cylindrical molds, large cylindrical molds with springs, open-valve grinding tools (round, rectangular, other special-shaped), hot pressing molds, insulating molds, etc. The insulating pressure mold is made of PEEK material, which has the characteristics of high hardness, good toughness, excellent finish, accurate precision and long life. product details
	Three column three layer fixture (outside) product details
	Hand press (outside) product details
Service	One year warranty, lifetime service.
