Product Model

NBD-TGA1200-M20

Main Functions

1. In the process of temperature increase, constant temperature or temperature decrease, it can automatically record the change curve of sample quality with temperature and time;

Electrical specifications

AC220V 4.0KW

Tmax

1150 ℃

Temperature control accuracy

±1℃

Measuring element type

K-type thermocouple 420mm

Heating temperature area size

L200*H200*D300mm

Furnace size

L680*H980*D610mm

220g

0.1mg以内

Weight of suspension wire and crucible

≈30g

Aluminum/Stainless Steel φ60*30mm

0~270g

≤10℃/min

control system

1. Weighing sensor range: 220g;

2. Temperature curve setting: 15 temperature curves can be pre stored, each of which can be set with 30 segments of "temperature time" curve;

3. Control mode: PLC realizes automatic control of the transmission mechanism, temperature module, ventilation, vacuuming, and weighing module;

4. The NBD-101EP embedded operating system features a graphical interface for exchanging Chinese and English, a 7-inch true color touch screen input, an intelligent human-machine dialogue mode, real-time heating power display, and non-linear temperature correction; The experimental report is generated independently, and the experimental data can be exported infinitely.

5. Data interface: USB data interface, supporting data export to USB flash drive and online printing;

6. Data recording method: automatically stored at predetermined time intervals;

7. Weighing module: a unique weighing module with higher accuracy and stability。

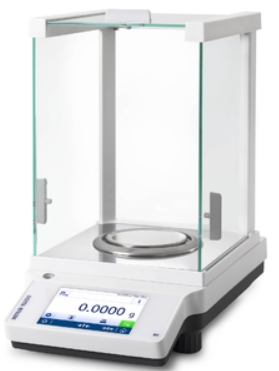

Weighing scale

A reliable balance that is simple, fast, and efficient for weighing. The measuring range is 220g; Readability is 0.1mg; Flexible connection through USB and RS232; External calibration; Password protection; Sturdy structure; 10 applications with accurate performance
The electromagnetic force compensation weighing sensor has overload protection function, which can provide consistent and reliable results even under high-intensity use.
Touchscreen that can be operated even with gloves
Color touch screens have an intuitive user interface, simple menus, and clear icons. Even with cotton or rubber gloves, it can be easily operated.
Equipped with a metal base, stainless steel scale pan, and overload protection, it ensures reliable performance even in high-intensity daily use.

net weight

90KG

Equipment usage precautions

1. Power the balance one hour in advance.
   Set the sintering process curve. The crucible has been installed.
   After 1 hour, the balance is reset to zero (whether it is reset or not is determined by the customer), and the sample is placed in the crucible.
   Start sintering and pay attention to changes in sample weight.
   After sintering, export the data for analysis.
   matters needing attention:
   1. There should be no large airflow around the balance.
   2. There should be no significant vibrations around the balance.
   Before resetting, the weight display should not exceed 4g, otherwise it cannot be reset through the touch screen (but can be reset using the balance reset button).


Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).
