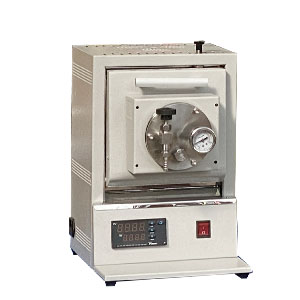

Equipment features:
1. Small in size and light in weight, it can be directly placed in the glove compartment. Not occupying laboratory space;
2. It can be used as a box furnace for heat treatment of large-sized samples, and the large-sized quartz chamber is equipped with a high sealing vacuum flange,The sample can be sintered under vacuum or atmospheric conditions;
3. The refractory insulation material made with advanced technology has low heat loss and effectively reduces equipment power;
4. Satisfy various material heat treatment sintering processes.

PRODUCT MODEL

NBD-VAH1200-80CI

Electrical specifications

AC220V    1KW

System vacuum

Reachable temperature

1200℃（<1 hour）

Maximum operating temperature

800℃（continuous）

Achievable heating rate

≤20℃/min

Furnace size

100*100*100mm

Overall dimensions of the furnace body

255 * 390 * 390 (length x height x depth)
Furnace tube: 255 * 390 * 300mm (length*height*depth)
Diagonal angle 370mm

Supporting cavity placement bracket

control system

1. Fuzzy PID temperature control, high brightness digital display;
2. The setting of 30 "time temperature" curves can be achieved through programming;
3. It has functions such as over temperature alarm, disconnection prompt, and leakage protection.

Weakly corrosive gas preheater
(Optional)

The whole body is made of 316L material, which can be preheated for various gases and corrosive gases,
Meet special process requirements, with a maximum temperature of 600℃.

precision

+/- 1℃

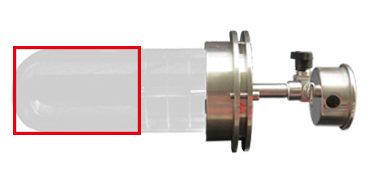

Effective volume of vacuum quartz reaction chamber: 370ml (Φ74*100mm)

net weight

≈12KG

Equipment usage precautions

When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the reaction chamber to avoid injury;
2. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts)
