Main features and advantages
Heating element:
Resistance wire heating tube: As a heating element, resistance wire heating tube has good thermal response speed and precise temperature control ability. They can heat hydrogen to the desired temperature (usually above 1000 ℃) in a relatively short period of time, and provide stable heating effects to meet the needs of various high-temperature treatments.
Insulation measures:
Alumina fiber cotton: High purity alumina fiber cotton is arranged around gas pipelines, which has extremely low thermal conductivity and excellent high temperature resistance (up to 1400℃). It can not only effectively reduce heat loss, but also maintain the high temperature state of the gas in the pipeline, improve preheating efficiency and reduce energy consumption.
Gas pipeline material:
310S stainless steel: The gas pipeline is made of 310S stainless steel material, which has the following advantages:
High strength: able to maintain structural integrity under high pressure conditions.
Excellent high temperature resistance:
310S stainless steel can work stably for a long time in oxidizing environments up to 1150 ℃ and reducing environments up to 1035 ℃, making it very suitable for the transmission of high-temperature hydrogen gas.
Corrosion resistance performance:
Especially at high temperatures, it has good resistance to oxidation and carburizing, which extends the service life of the equipment.

Equipment name

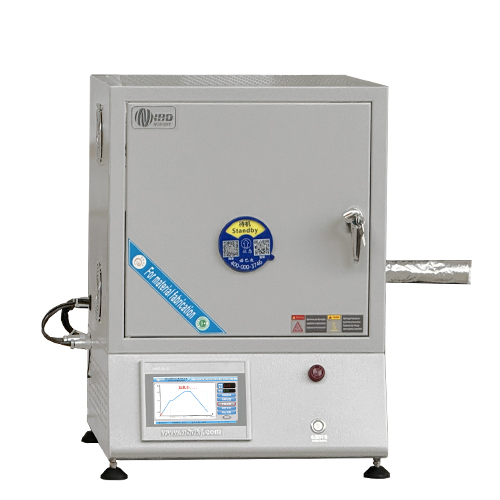

High pressure hydrogen preheating and blowing system

power supply

AC 220V 50HZ

rated power

3.2KW

heating element

310S light rod heater with a diameter of 15.8 * 319mm

sensor type

K-type thermocouple with a diameter of 1 * 600mm

Tmax

1000℃

Recommended heating rate

≤5℃/min

Mass Flow Controller

S500 5SLM φ 6.35 double card sleeve 2-meter short wire fluorine rubber seal nitrogen calibration

Import and export of gas

Φ 10 double card sleeve connector

Overall dimensions of furnace body (without furnace frame)

长550*高700*深565mm

（炉架尺寸长600*高700*深600mm）

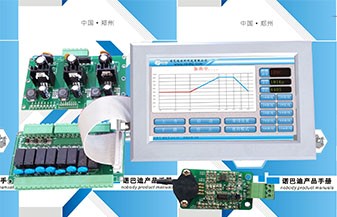

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Temperature Accuracy

+/- 1℃

net weight

About 50KG

Service Support

One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)
