1. Use contactless thyristor module to improve the stability of system control;
2. The use of vacuum forming process made of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
3. Multiple electrode connectors, easy to switch;
4. Modular structure, durable and easy to maintain.

Model

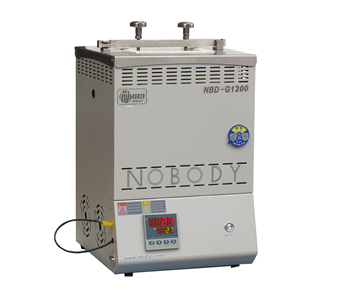

NBD-G1200-15TI（square cavity）

Electrical Spec

AC220V    3.5KW

Tmax

1100℃

K-Thermocouple

Heating rate

≤20℃/min

Dimensions

L400*D445*H640mm

Control system

1. Fuzzy PID temperature control, high light digital tube display;
2. The setting of 30 "time-temperature" curves can be realized through programming;
3. It has the functions of overtemperature alarm, broken couple warning, leakage protection and so on.

Temp Accuracy

+/- 1℃

Heating chamber
Mo-doped Fe-Cr-Al alloy
(Heating on three sides)

150*150*150mm

L180*W180*H(20--110 adjustable)mm

Net weight

Appr. 30KG

Cautions

1. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment;

Service

1 year warranty with lifetime support (warranty does not cover consumable components such as furnace tubes and seals).
